Datasheet Download| Reference | Gain (dB) | P-1dB OUT (dBm) | Sat. Output Power (dBm) | PAE (%) | IP3 (dBm) | RF Bandwidth (GHz) | Bias (mA) | Case | Bias (V) | |
|---|---|---|---|---|---|---|---|---|---|---|
| min | max | |||||||||
The CHA1252-QDG is a three-stage Low Noise Amplifier operating in the 11 – 18GHz frequency band. This LNA typically presents low Noise Figure of 1.3dB associated to a small signal gain of 26dB.
It can provide up to 7dBm output power at 1dB gain compression and needs DC power supply of 2V/30mA. It is available in 4x4 plastic package.
Designed for space applications, it is also ideal for a wide range of microwave systems.
This product is developed using a GaAs pHEMT process and is provided on low cost

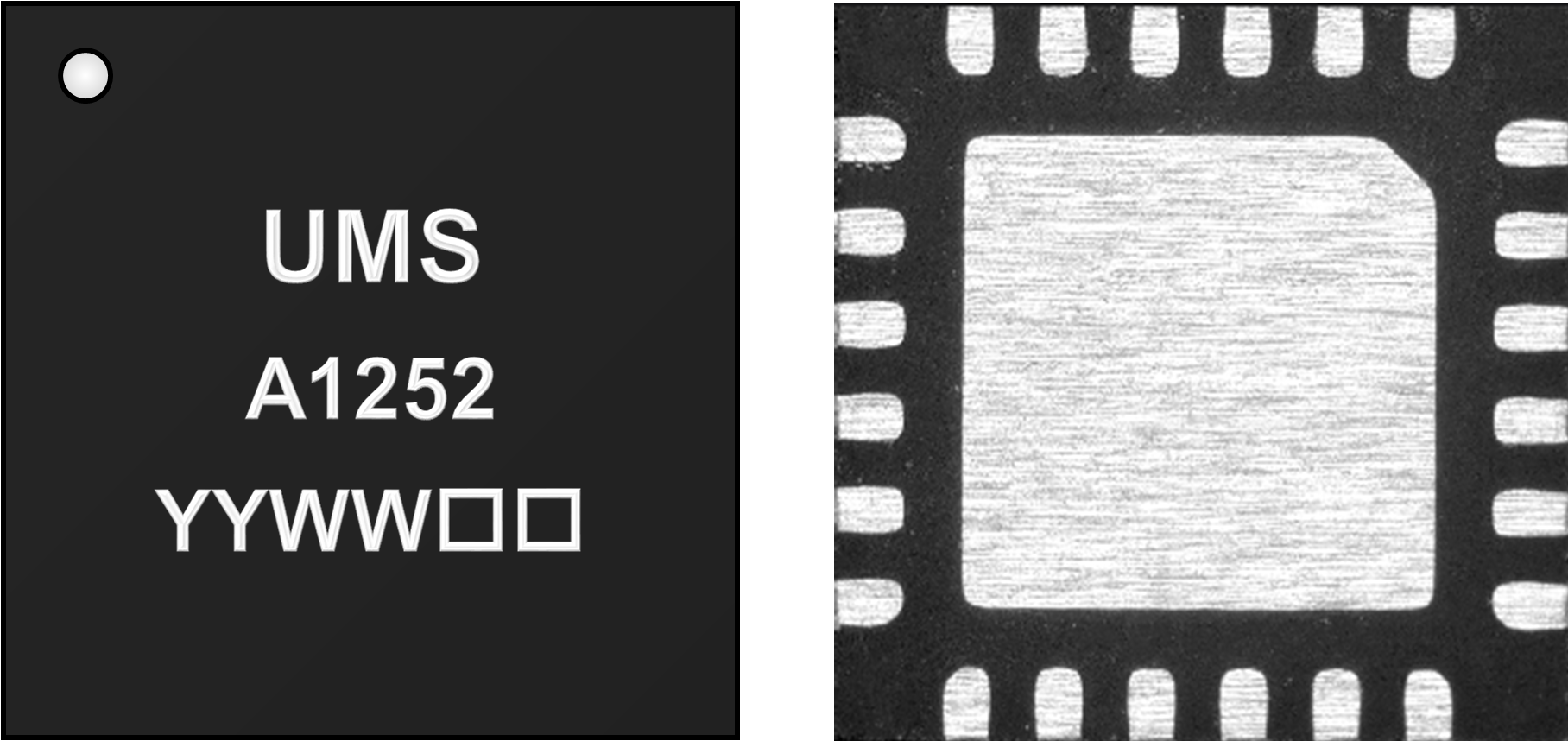

SMD RoHS compliant QFN plastic package.
| Reference | Gain (dB) | P-1dB OUT (dBm) | Sat. Output Power (dBm) | PAE (%) | IP3 (dBm) | RF Bandwidth (GHz) | Bias (mA) | Case | Bias (V) | |
|---|---|---|---|---|---|---|---|---|---|---|
| min | max | |||||||||
