Datasheet Download| Reference | Gain (dB) | Gain Flatness (+/-dB) | Noise Figure (dB) | P-1dB OUT (dBm) | RF Bandwidth (GHz) | Bias (mA) | Case | Bias (V) | |
|---|---|---|---|---|---|---|---|---|---|
| min | max | ||||||||
The CHA2050-QDG is a three-stage GaAs Low Noise Amplifier operating in the frequency band 17-21.5GHz. This LNA typically presents 1.3dB Noise Figure associated to a typical small signal gain of 26dB. It provides 6dBm output power at 1dB gain compression. The overall power supply is 2V/30mA.
This LNA is dedicated to Satcom applications and well suited for a wide range of microwave applications and systems.

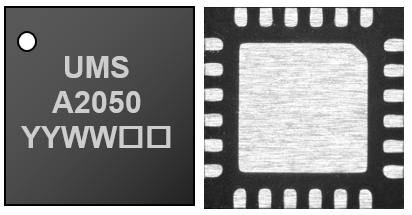

The product is developed with a pHEMT process, it is provided on low cost SMD RoHS compliant QFN 4x4 plastic package.
| Reference | Gain (dB) | Gain Flatness (+/-dB) | Noise Figure (dB) | P-1dB OUT (dBm) | RF Bandwidth (GHz) | Bias (mA) | Case | Bias (V) | |
|---|---|---|---|---|---|---|---|---|---|
| min | max | ||||||||
