Datasheet Download| Reference | Gain (dB) | Gain Flatness (+/-dB) | Noise Figure (dB) | P-1dB OUT (dBm) | RF Bandwidth (GHz) | Bias (mA) | Case | Bias (V) | |
|---|---|---|---|---|---|---|---|---|---|
| min | max | ||||||||

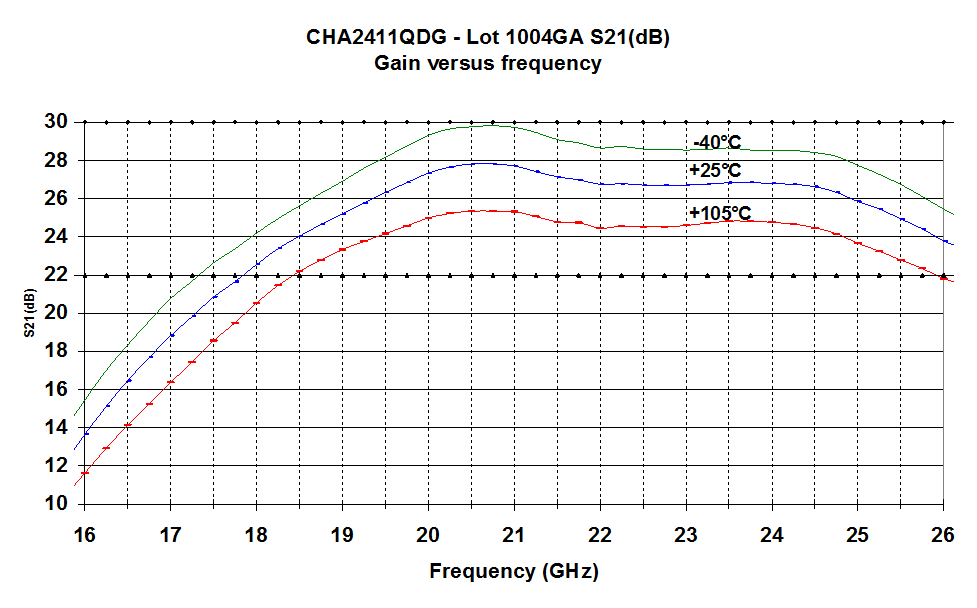

The CHA2411-QDG is a K-band Low Noise Amplifier providing 26dB gain with a noise figure of 2.5dB from a single bias supply +5V.
The circuit is manufactured with a pHEMT process, 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography.
It is supplied in RoHS compliant SMD package.
| Reference | Gain (dB) | Gain Flatness (+/-dB) | Noise Figure (dB) | P-1dB OUT (dBm) | RF Bandwidth (GHz) | Bias (mA) | Case | Bias (V) | |
|---|---|---|---|---|---|---|---|---|---|
| min | max | ||||||||
