Datasheet Download| Reference | Gain (dB) | P-1dB OUT (dBm) | Sat. Output Power (dBm) | IP3 (dBm) | RF Bandwidth (GHz) | Bias (mA) | Case | Bias (V) | |
|---|---|---|---|---|---|---|---|---|---|
| min | max | ||||||||

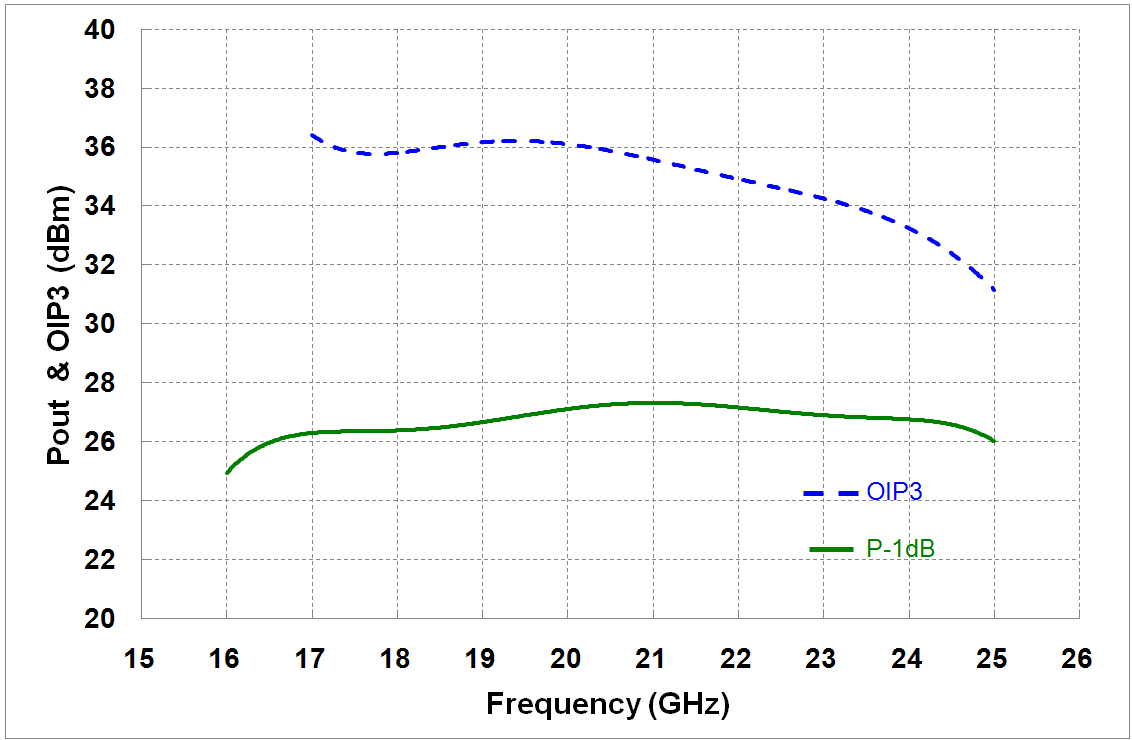

The CHA5350-99F is a four stage monolithic MPA that typically provides an output power of 26.5dBm at 1dB gain compression associated to a high IP3 output of 34dBm.
It is designed for a wide range of applications, from professional to commercial communication systems.
The circuit is manufactured with a pHEMT process, 0.15µm gate length, via holes through the substrate, air bridges and electron beam gate lithography.
It is available in chip form.
| Reference | Gain (dB) | P-1dB OUT (dBm) | Sat. Output Power (dBm) | IP3 (dBm) | RF Bandwidth (GHz) | Bias (mA) | Case | Bias (V) | |
|---|---|---|---|---|---|---|---|---|---|
| min | max | ||||||||
