Datasheet Download| Reference | Gain (dB) | P-1dB OUT (dBm) | Sat. Output Power (dBm) | PAE (%) | IP3 (dBm) | RF Bandwidth (GHz) | Bias (mA) | Case | Bias (V) | |
|---|---|---|---|---|---|---|---|---|---|---|
| min | max | |||||||||

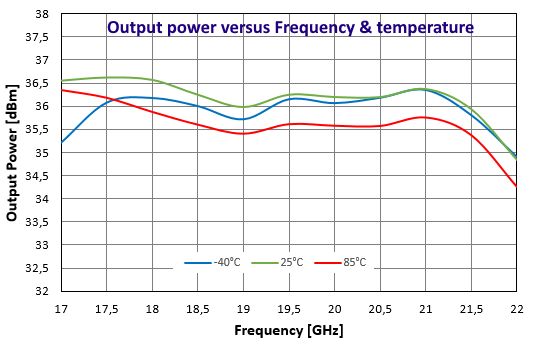

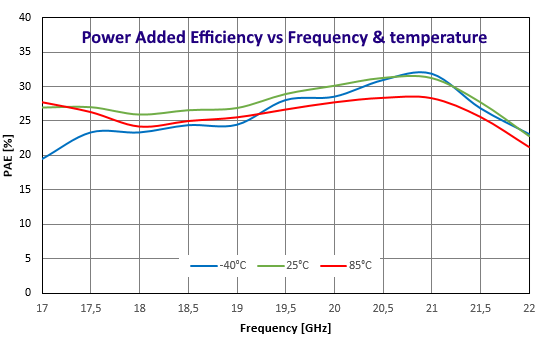

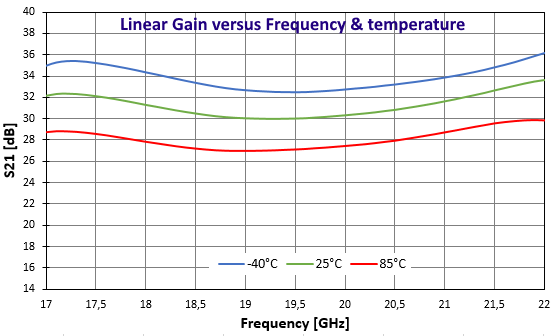

The CHA6282-QCB is a three-stage GaN High Power Amplifier in the frequency band 17.3-21.5GHz. This HPA typically provides 4W output power associated to 28% of Power Added Efficiency. The circuit exhibits a small signal gain higher than 30dB. The overall power supply is 18V/260mA.
The circuit is a very versatile amplifier for high performance systems.
The circuit is dedicated to Space applications and well suited for a wide range of microwave applications and systems.
The product is developed on a robust 0.15µm gate length GaN on SiC HEMT process and is provided on low cost SMD RoHS compliant plastic package.
| Reference | Gain (dB) | P-1dB OUT (dBm) | Sat. Output Power (dBm) | PAE (%) | IP3 (dBm) | RF Bandwidth (GHz) | Bias (mA) | Case | Bias (V) | |
|---|---|---|---|---|---|---|---|---|---|---|
| min | max | |||||||||
