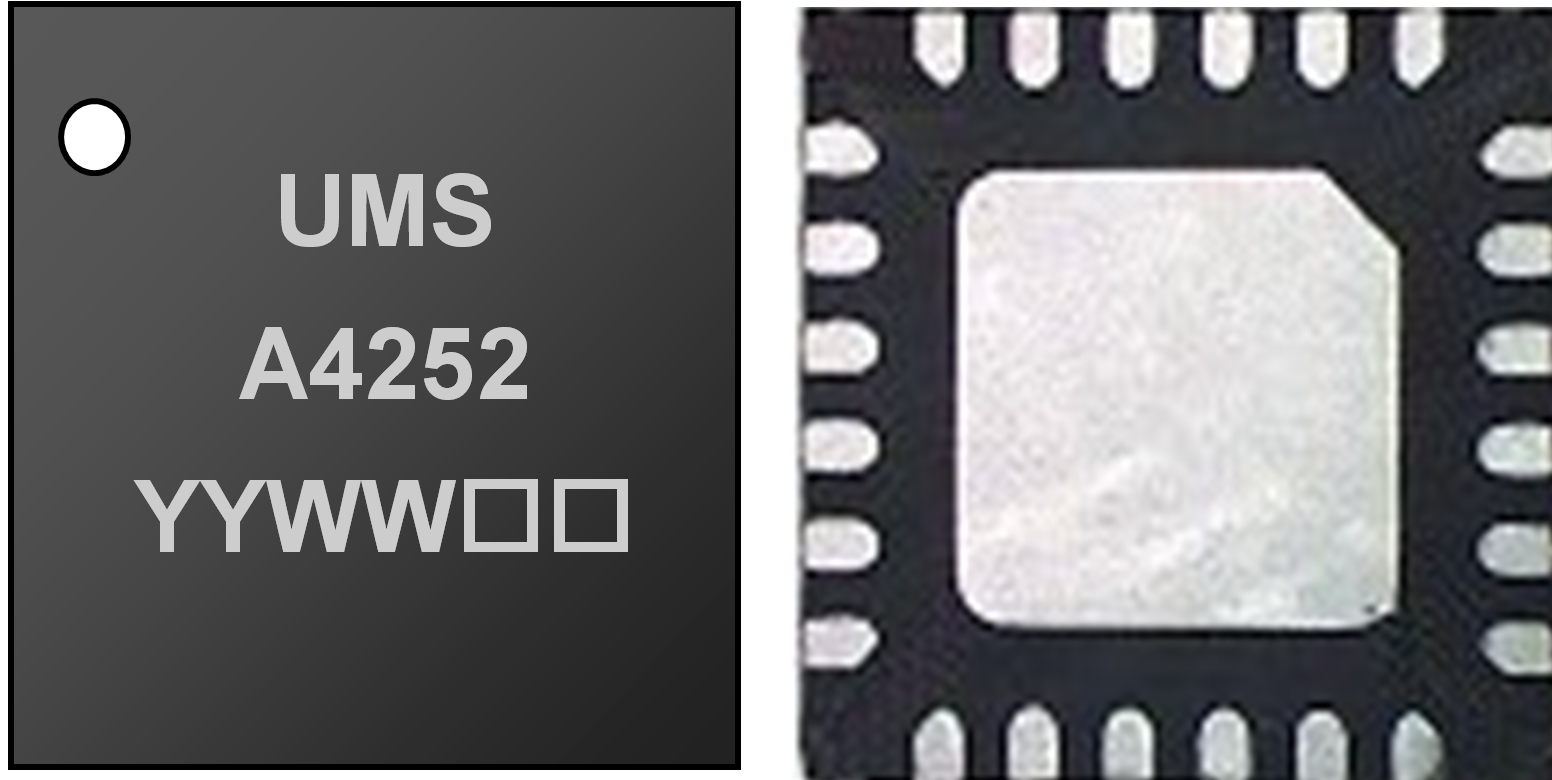

The CHA4252-QKB is a three-stage Medium Power Amplifier in the 17.2 – 21.3GHz frequency band. This MPA typically provides 25dBm output power associated to 30% of Power Added Efficiency. The circuit exhibits a small signal gain of 30dB. The overall power supply is 14V/15mA.
The circuit is a very versatile amplifier for high performance systems.
Designed for space applications, it is also well suited for a wide range of microwave applications and systems.
The product is developed on a robust GaN on SiC HEMT process and is provided on low cost SMD RoHS compliant QFN plastic package.
