Datasheet Download| Reference | Gain (dB) | P-1dB OUT (dBm) | Sat. Output Power (dBm) | PAE (%) | IP3 (dBm) | RF Bandwidth (GHz) | Bias (mA) | Case | Bias (V) | |
|---|---|---|---|---|---|---|---|---|---|---|
| min | max | |||||||||
The CHA6682-QKB is a three-stage packaged monolithic High Power Amplifier.
It is well suited for VSAT, SatCom, 5G communication and RADAR applications.
The CHA6682-QKB provides high linearity with low consumption and can be used as a driver stage. It includes a RF power detector.
The circuit is manufactured on a robust GaN-on-SiC HEMT technology. The input and output are internally matched to 50Ω and integrate ESD RF protection.

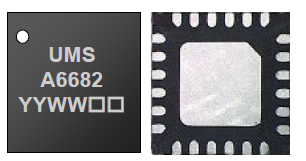

It is available in standard surface mount 24 Leads QFN 4x4. It is supplied in RoHS compliant SMD package.
| Reference | Gain (dB) | P-1dB OUT (dBm) | Sat. Output Power (dBm) | PAE (%) | IP3 (dBm) | RF Bandwidth (GHz) | Bias (mA) | Case | Bias (V) | |
|---|---|---|---|---|---|---|---|---|---|---|
| min | max | |||||||||
