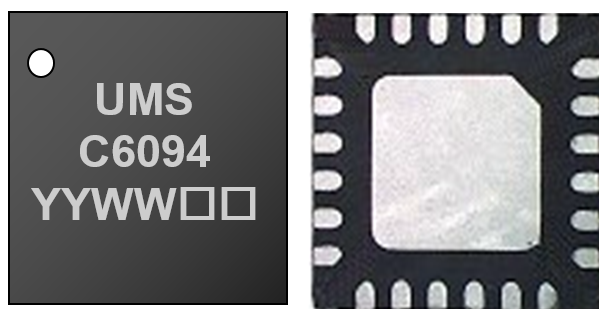

The CHC6094-QKB is a multi-function monolithic packaged front-end operating in 37-41GHz band with a low noise high linearity amplifier, input/output switches and a linear efficient High Power Amplifier.
It suits well for 5G terrestrial networks, high-throughput Fixed Wireless Access and phased array antennas.
The transmit channel includes SWin+PA+SWout that provide 2W maximum power and 23dB linear Gain. SWout+LNA+SWin on the receive channel provide 4.8dB Noise Figure with 23dB Gain.
This circuit is manufactured on a robust GaN-on-SiC HEMT technology.
It is available in a standard surface mount 24 leads QFN4x4 internally matched to 50Ω.
