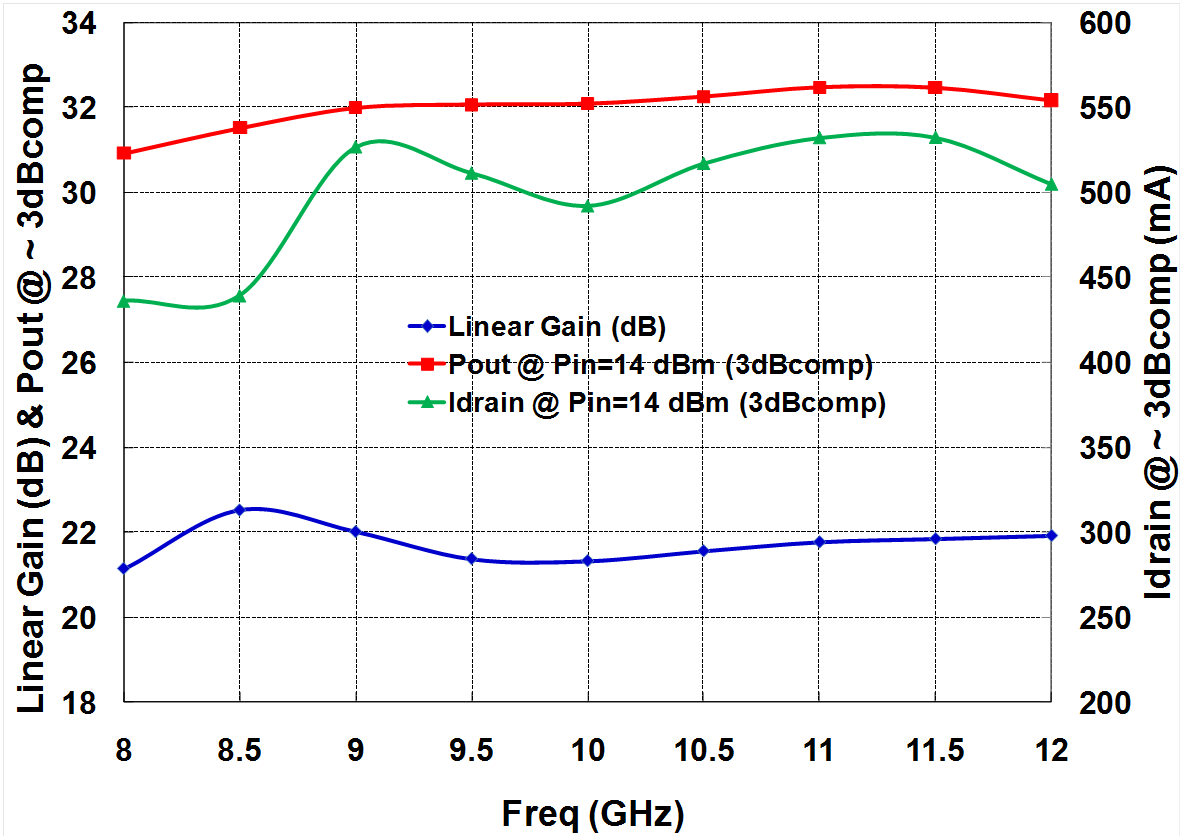

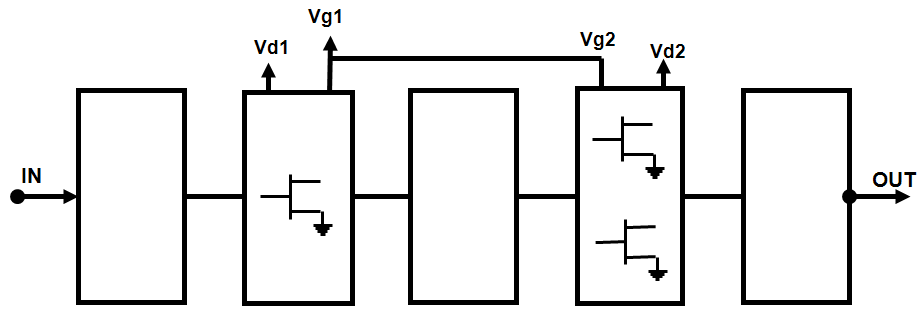

The CHA6005-99F is a High Power Amplifier monolithic circuit which integrates two stages and produces 32.5dBm output power associated to a high Power Added Efficiency of 38%.
It is designed for a wide range of applications, from defense to commercial communication systems.
The circuit is manufactured with a pHEMT process, 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography.
It is available in chip form.
