The CHA6105-99F is a monolithic three-stage medium power amplifier designed for X band applications.

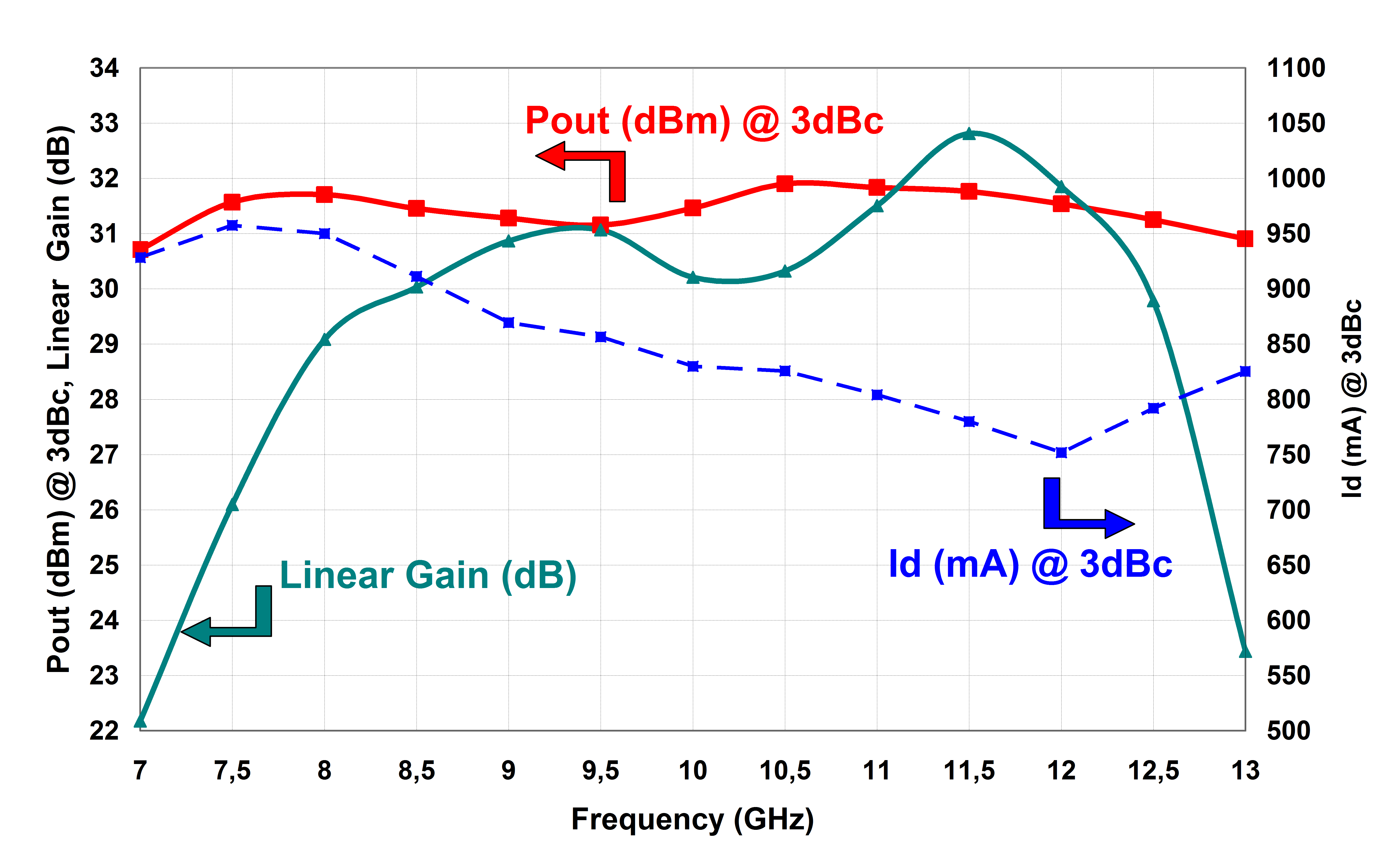

The driver provides typically 31.5dBm output power at saturation and is suitable for systems requiring a high compression level. Moreover it includes a biasing control circuit that makes Pout less sensitive to spread and chip environment.
The circuit is manufactured with a pHEMT process, 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography.
It is available in chip form.
