Datasheet Download| Reference | Gain (dB) | P-1dB OUT (dBm) | Sat. Output Power (dBm) | PAE (%) | IP3 (dBm) | RF Bandwidth (GHz) | Bias (mA) | Case | Bias (V) | |
|---|---|---|---|---|---|---|---|---|---|---|
| min | max | |||||||||

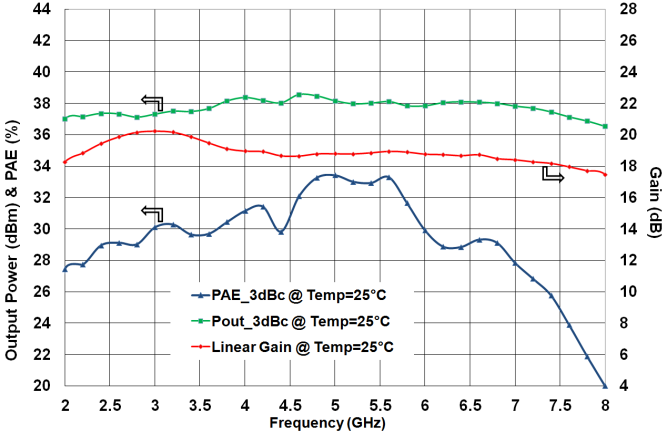

The CHA6015-99F is a HPA that provides typically 37.5dBm output power on the frequency band 2-8GHz.
The circuit is dedicated to defence applications and also well suited for a wide range of microwave applications and systems.
The circuit is manufactured with a pHEMT process, 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography.
It is available in chip form.
| Reference | Gain (dB) | P-1dB OUT (dBm) | Sat. Output Power (dBm) | PAE (%) | IP3 (dBm) | RF Bandwidth (GHz) | Bias (mA) | Case | Bias (V) | |
|---|---|---|---|---|---|---|---|---|---|---|
| min | max | |||||||||
